JSTD Rev H Workmanship Kit

 Circuit Technology premium kit for IPC-J standard 001 training and practice

This kit has many improvements over the standard kit including:
-larger PCB with more land areas for addition workmanship skill development and practice
-additional parts for the same
-lead free PCB laminate material for more realistic practice and a more robust PCB
-ground planes for more realistic practice
-better packaging to reduce component damage and easier identification of parts
-BoM and assembly diagram with reference designators for more efficient practice

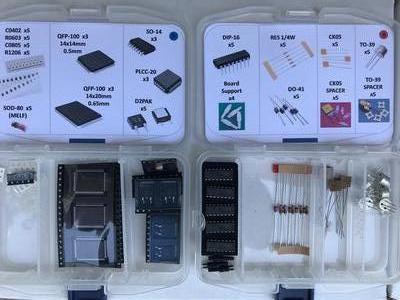

Soldering Kit Components

  • J-STD Printed Circuit Board/2
  • C0402/5
  • C0805/5
  • CAP CK05/5
  • CAP CK05 Spacer/5/li>
  • D2PAK/5
  • DIP-16/5
  • PLCC-20/2
  • QFP-100 (14x14mm, 0.5mm)/3
  • QFP-100 (14x20mm, 0.65mm)/3
  • R0603/5
  • R1206/5
  • RES 1/4W Axial/5
  • SO-14/5
  • SOD-80 (MELF)/5
  • TO-39/5
  • TO-39 Spacer/5

Descrip Price Each 6-10 11-20 21+ QTY
IPC JSTD Training Kit $75.00 $72.00 $68.00 $64.00
